Xuan Nickel Alloys, established in Da Nang, Vietnam, is a well-established manufacturer and exporter of high-quality nickel-based alloys and special steel products. Among its high-end range, Waspalloy Sheets and Plates are renowned for their high heat resistance, strength, and durability. Designed to withstand challenging environments, these materials are extensively applied within aerospace, power generation, and chemical processing fields where dependability under harsh conditions is paramount. With intense focus on innovation and global quality standards, Xuan Nickel Alloys provides Waspalloy solutions customized to address varied industrial requirements, providing optimal performance, long life of service, and unparalleled consistency in worldwide applications.
Waspalloy Sheets and Plates consist of about 58–62% Nickel, 18–22% Chromium, 3.5–5% Cobalt, 1.2–2% Molybdenum, 2–3% Titanium, 1.2–2% Aluminum, with minute traces of Boron, Carbon, and Zirconium. These alloys exhibit remarkable strength and stability at elevated temperatures. Mechanical properties consist of tensile strength 965–1240 MPa, yield strength 725–1035 MPa, and elongation 10–20%. These alloys have strong creep resistance, fatigue strength, and oxidation resistance up to 980°C, which gives Waspalloy a popular selection for high-stress, high-temperature industrial usage
| Specification : | AMS, AMS, API |

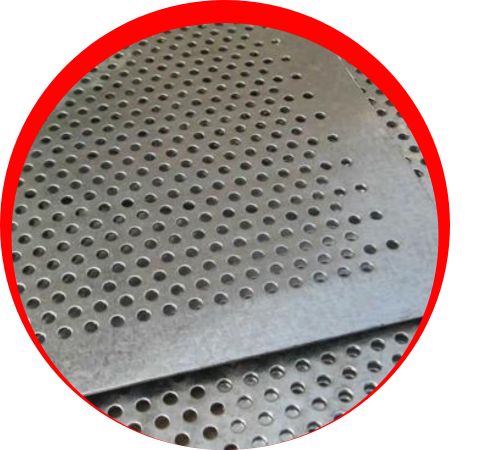

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |

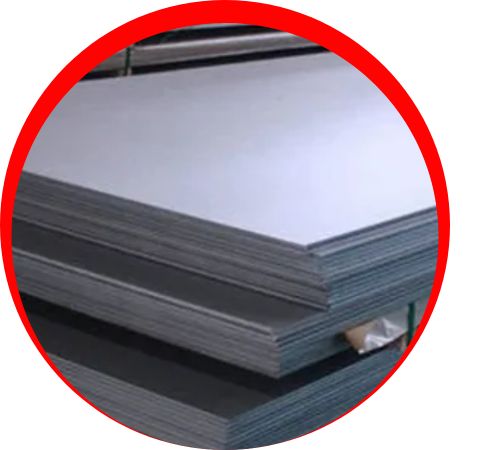

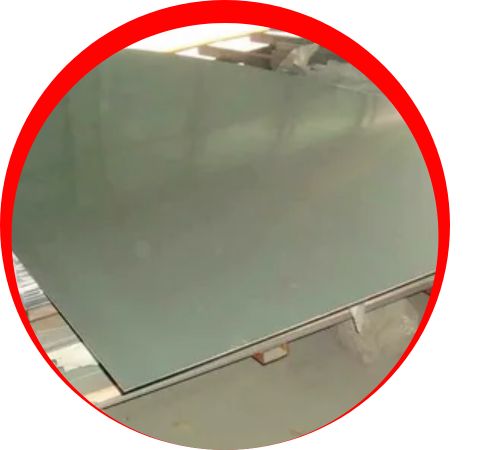

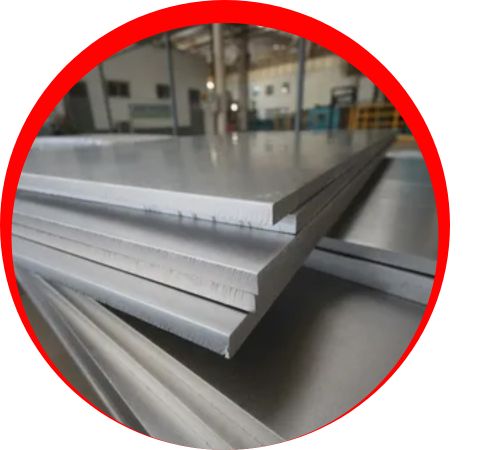

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Waspaloy (UNS-N07001) |
| STANDARD | UNS | Material No |
| Waspaloy | N07001 | 2.4654 |
| Waspaloy | Cr | Ni | Mo | Co | Al | Ti | B | C | Zr | Fe | Mn | Si | P | S | Cu |
| MIN | 18.00 | — | 3.50 | 12.00 | 1.20 | 2.75 | 0.003 | 0.02 | 0.02 | — | — | — | — | — | — |
| MAX | 21.00 | Balance | 5.00 | 15.00 | 1.60 | 3.25 | 0.01 | 0.10 | 0.08 | 2.00 | 0.10 | 0.15 | 0.015 | 0.015 | 0.10 |
| Temperature, °F | Ultimate Tensile Strength, ksi | 0.2% Yield Strength, ksi | Elongation, % | Hardness, Rockwell C |
| 70 | 193 | 132 | 27 | 34-40 |
| 1200 | 173 | 112 | 21 | – |
| 1400 | 140 | 112 | 12 | – |
| 1600 | 79 | 60 | 12 | – |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Waspalloy Sheets & Plates in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Waspalloy Plates and Sheets are necessary in high-temperature strength and corrosion-resistant industries. They are extensively used in aerospace for turbine blades, combustion chambers, and afterburner parts because they have withstanding capability and can operate under thermal stress. Waspalloy is utilized in the power generation sector in gas turbines, heat exchangers, and other equipment. The chemical processing industry applies them to reactors, pressure vessels, and equipment exposed to aggressive chemicals. Strength, reliability, and resistance to oxidation also qualify them for industrial furnaces and high-performance fasteners, which support long-term efficiency in demanding applications.
