Xuan Pipes, a reputable manufacturer and supplier based in Da Nang, Vietnam, specializes in high-quality Copper Nickel Pipes designed for exceptional corrosion resistance, durability, and performance in tough environments. These pipes are crafted to meet international standards and come in both seamless and welded varieties, with a range of diameters, wall thicknesses, and finishes to cater to various industrial needs. Perfect for marine, chemical processing, heat exchangers, and desalination applications, Copper Nickel Pipes deliver reliable performance and a long service life, even in challenging conditions.
The primary components of Copper Nickel Pipes are Copper and Nickel, usually in ratios like 90/10 or 70/30, along with small amounts of Iron and Manganese to boost mechanical strength and corrosion resistance. This unique blend offers remarkable protection against seawater corrosion, biofouling, and chemical damage while ensuring excellent thermal and electrical conductivity. On the mechanical side, Copper Nickel Pipes boast high tensile strength, toughness, and flexibility, making them ideal for high-pressure and high-temperature situations.
| Dimensions | : | ASTM, ASME and API |
|---|---|---|
| Standard | : | |
| Size | : | 1/8″NB TO 30″NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |

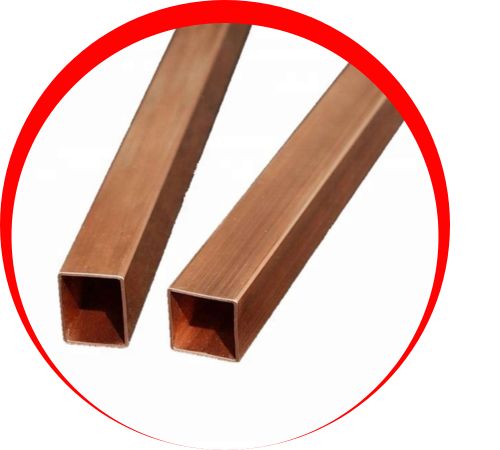

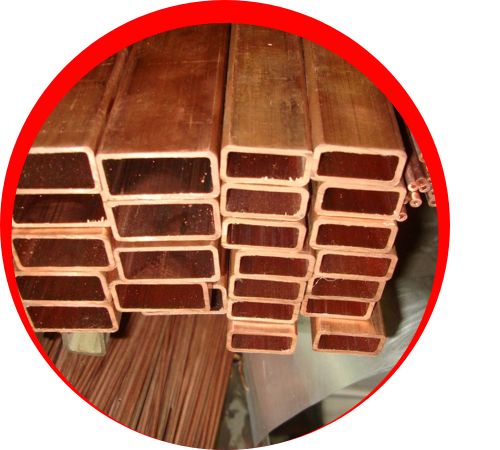

| Form | : | Round, Square, Rectangular, Hydraulic Etc |

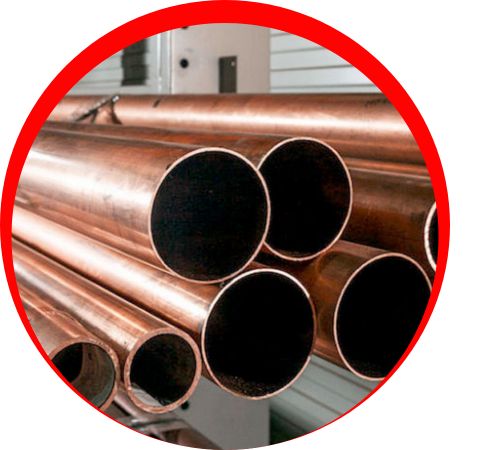

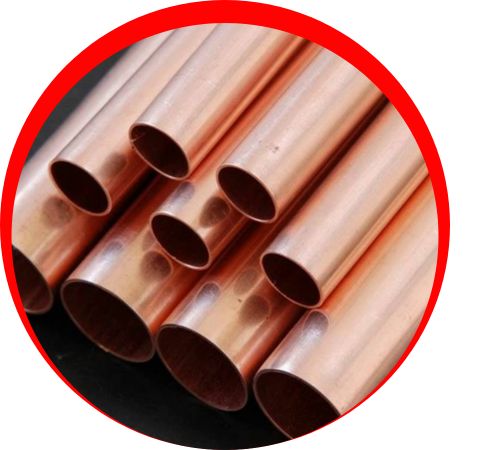

| Type | : | Seamless / Fabricated |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Threaded |
| Grade | Cu | Pb | Mn | Fe | Zn | Ni |
| Cu-Ni | 65.0 min | .05 max | 1.0 max | 0.4-1.0 | 1 max | 29 – 33 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Density | kg/dm³ | 8.95 |
|---|---|---|
| Melting Range | °C | 1170-1240 |
| Specific Heat | J/kg °K | 377 |
| Thermal Conductivity | W/m°K | 29 |
| Coeff. of Linear Expansion 10-300°C” | 10-6/°K | 16 |
| Electrical Resistivity | microhm. cm | 34 |
| Modulus of Elasticity | GPa | 152 |
| Modulus of Rigidity | GPa | 56 |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Pipes in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These pipes are extensively utilized in marine engineering, shipbuilding, offshore platforms, and desalination plants, particularly for piping systems that come into contact with seawater and harsh chemicals. They also find applications in heat exchangers, condensers, and chemical processing facilities where corrosion resistance is paramount. With their impressive combination of strength, durability, and resilience against harsh environments, Copper Nickel Pipes stand out as a dependable choice for long-lasting and efficient industrial piping solutions.
