Xuan Pipes, a reputable manufacturer and supplier based in Da Nang, Vietnam, specializes in high-quality Copper Nickel 90/10 Pipes that are designed to excel in terms of corrosion resistance, durability, and performance, even in the toughest environments. These pipes are crafted to meet international standards and come in both seamless and welded varieties, with a range of diameters, wall thicknesses, and finishes to cater to various industrial needs. Perfect for marine applications, chemical processing, heat exchangers, and desalination projects, Copper Nickel 90/10 Pipes deliver dependable performance and a long lifespan, even when faced with harsh conditions.
These pipes are made up of 90% Copper and 10% Nickel, along with small amounts of Iron and Manganese to boost their mechanical strength and resistance to corrosion. This unique blend gives them remarkable protection against seawater corrosion, biofouling, and chemical damage, while also ensuring excellent thermal and electrical conductivity. On the mechanical side, Copper Nickel 90/10 Pipes boast high tensile strength, toughness, and flexibility, making them ideal for high-pressure and high-temperature situations.
Specification: ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard: ASTM, ASME and API
Size: 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter: 4.00 to 22.00 mm
Wall Thickness: Between 0.15mm and 1.50 mm

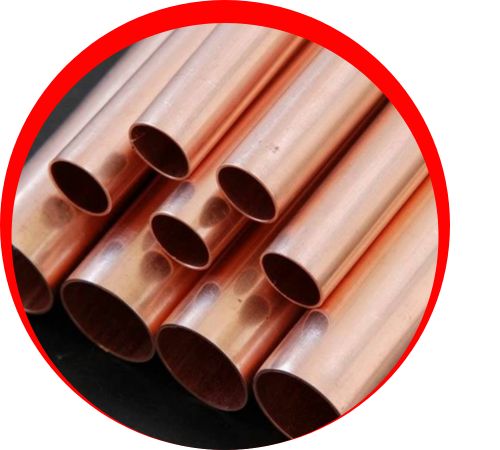

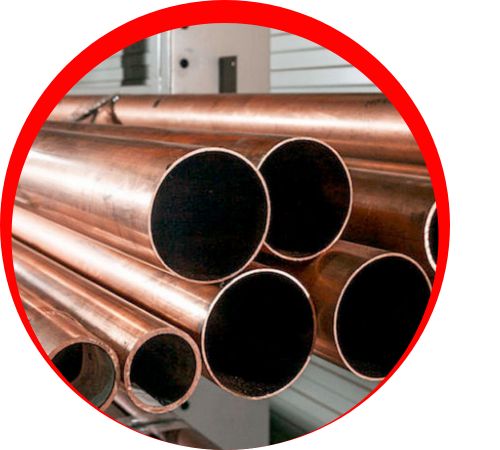

Type: Seamless / ERW / Welded / Fabricated Pipes

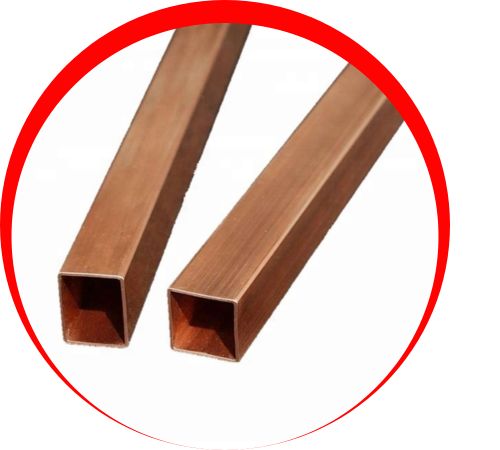

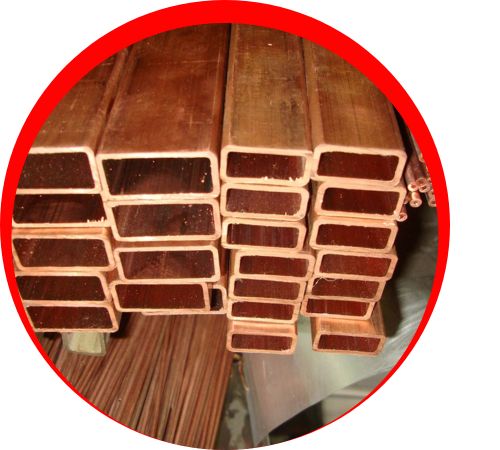

Form: Round, Square, Rectangular, Oval, Hydraulic Etc
Length: Single Random, Double Random & Required Length
End: Plain End, Beveled End, Treaded
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non-Destructive Test Reports
Packing: Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials: Sizes and Specifications other than above can be manufactured on request
| Cu | Fe | Pb | Mn | Ni | Zn | |
| Min/Max | Rem | 1.0 – 1.8 | 0.05 | 1 | 9.0 – 11.0 | 1 |
| Nominals | 88.6000 | 1.4000 | – | – | 10.0000 | – |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Pipes in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Copper Nickel 90/10 Pipes commonly used in marine engineering, shipbuilding, offshore platforms, and desalination facilities, where they are part of piping systems that come into contact with seawater and aggressive chemicals. They’re also utilized in heat exchangers, condensers, and chemical processing plants where corrosion resistance is a must. With their impressive combination of strength, durability, and ability to withstand harsh environments, Copper Nickel 90/10 Pipes are a smart choice for reliable and efficient industrial piping solutions.
