Xuan Alloys, a top-notch manufacturer and supplier based in Da Nang, Vietnam, specializes in high-quality Nitronic Sheets and Plates that are celebrated for their outstanding corrosion resistance, strength, and durability. Crafted to meet international standards, these sheets and plates come in a variety of thicknesses, sizes, and surface finishes to cater to a wide range of industrial needs. Whether it’s for chemical processing, marine applications, aerospace, oil & gas, or power generation, Nitronic Sheets and Plates deliver reliable performance and a long service life, even in the toughest environments.
These sheets and plates are primarily made from high-alloyed stainless steel, featuring essential elements like Chromium, Nickel, Manganese, and Nitrogen. This unique blend grants them remarkable resistance to stress corrosion cracking, pitting, crevice corrosion, and oxidation, all while ensuring high mechanical strength. On the mechanical front, Nitronic Sheets and Plates boast excellent tensile strength, yield strength, toughness, and fatigue resistance, making them perfect for both structural and functional uses in challenging conditions.
| Standard : | UNS S21906 | AMS 5656 | MIL-T-9821 | ASTM A276 | ASME SA276 UNS S21800 | Alloy 218 | ASME SA 193 | AMS 5848 | ASTM A 193 EN 1.3964 | ISO 15156-3 | NACE MR0175 | UNS S20910 | AMS 5764 | ASTM A193 | Werkstoff 1.3964 |
| Size : | 20mm x 1200 x 500 |

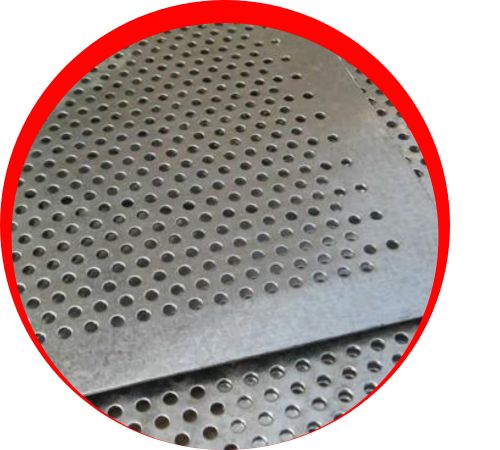

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Nitronic 40 / 50 / 60 (UNS-S20910, S21800, S21900) |
| STANDARD | UNS | EN | ISO | NACE | AMS | ASTM | Werkstoff | other |
| Nitronic 40 | S21906 | – | – | – | 5656 | A276 | – | MIL-T-9821 |
| Nitronic 50 | S20910 | 1.3964 | 15156-3 | MR0175 | 5656 | A193 | 1.3964 | MIL-T-9821 |
| Nitronic 60 | S21800 | – | – | – | 5848 | A193 | 1.3964 | Alloy 218 |
| Weight% | C | P | Si | Ni | Fe | Mn | S | Cr | N | Mo | Cu |
| Nitronic 40 (21-6-9) | 0.04 max | 0.060 max | 1.00 max | 5.5-7.5 | Bal | 8-10 | 0.030 max | 19-21.5 | 0.15-0.40 | 0.75 max | 0.75 max |
| Alloy | Cross Section Size | Test Direction | Yield Strength 0.2% | Ultimate Tensile Strength | Elongation in 2″(%) | Reduction of Area % | Rockwell B Hardness | ||
| ksi | MPa | ksi | MPa | ||||||
| Nitronic 40 (21-6-9) | 6″ (152mm) sq | Longitudinal | 62 | 428 | 95 | 655 | 46 | 69 | |
| Nitronic 40 (21-6-9) | 6″ (152mm) sq | Transverse | 52 | 358 | 93 | 641 | 30 | 45 | |
| Nitronic 40 (21-6-9) | 4″ (102mm) sq | Longitudinal | 56 | 386 | 97 | 668 | 53 | 73 | |
| Nitronic 40 (21-6-9) | 1″ (25.4mm)sq | Longitudinal | 52 | 358 | 101 | 696 | 53 | 73 | 90 |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nitronic Sheet and Plates in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Nitronic Sheets and Plates widely utilized in chemical processing equipment, heat exchangers, reactor vessels, storage tanks, and structural components that come into contact with corrosive substances. In the marine and offshore sectors, they are essential for seawater piping, valves, and fittings. The aerospace and automotive industries also rely on them for components that demand high strength and corrosion resistance. With their impressive combination of mechanical reliability, corrosion resistance, and durability, Nitronic Sheets and Plates are a trusted choice for critical industrial, engineering, and structural applications.
