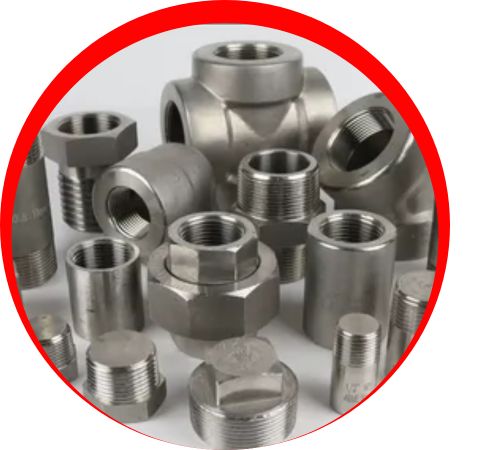

Xuan Nickel Alloys, based in Da Nang, Vietnam, is a leading manufacturer and supplier of Inconel 617 forged fittings, offering high-performance solutions for critical applications in power generation, petrochemical, aerospace, and heat treatment industries. The organization manufactures a full series of forged components, such as elbows, tees, couplings, plugs, and unions, through precision forging methods to meet dimensional accuracy and mechanical consistency. Renowned for their focus on quality, Xuan Nickel Alloys offers fittings that perform outstandingly in harsh environments of high temperature, pressure, and aggressive chemical exposure.
Inconel 617 is a chromium, cobalt, and molybdenum containing nickel-based alloy with a special mix of corrosion resistance, oxidation stability, and strength. The alloy has 20–24% chromium, 9–10% molybdenum, 44.5–61% nickel, and 8–10% cobalt. Forged fittings of Inconel 617 provide tensile strength of about 540 MPa and yield strength of about 300 MPa with a very good creep resistance in high temperatures up to 1100°C. The alloy is also carburization, sulfidation, and chloride corrosion resistant and hence very ideal for use in applications that require thermal and chemical stability.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

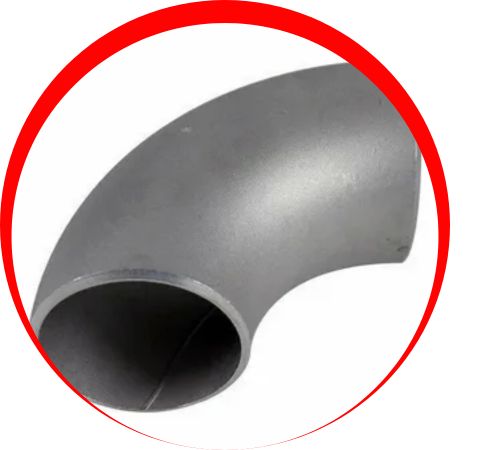

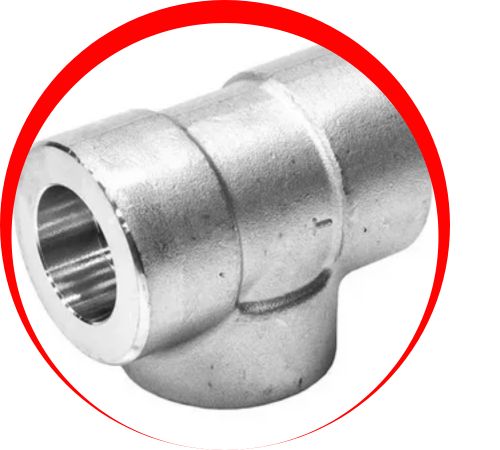

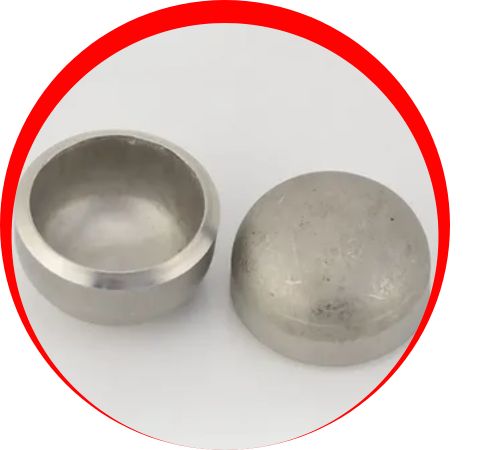

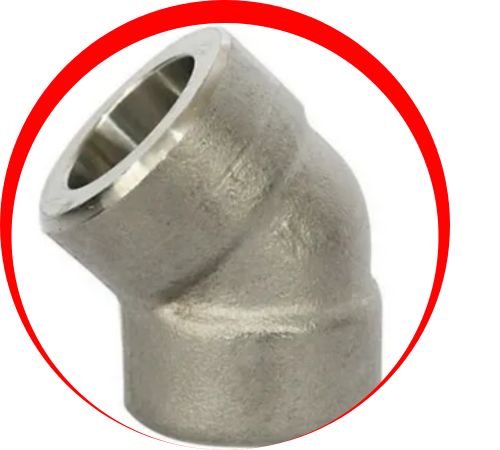

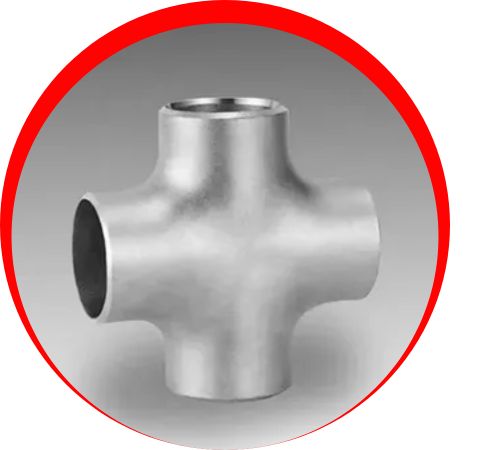

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Forged fittings of Inconel 617 are used in gas turbines, heat exchangers, reformer units, high-temperature ducts, and nuclear systems. With their capability to handle extreme temperatures and corrosive media, they are perfect for flanged and welded piping systems used in power generation plants and chemical processing plants. These fittings are leak-tight, pressure-resistant connections under extreme thermal cycling and mechanical stress. The higher metallurgical stability and strength of Inconel 617 provide long-lasting, low-maintenance performance in the toughest industrial conditions where failure is unacceptable.
