Xuan Nickel Alloys, a Da Nang, Vietnam-based prominent manufacturer and supplier of high-quality Tantalum R05200 Sheets, is a reliable company known for their highest purity, exceptional corrosion resistance, and tolerance to harsh environments. These sheets are specifically made for businesses that need reliability and durability. With high resistance to chemical aggressiveness and high-temperature stability, Tantalum R05200 Sheets yield long-term efficiency and performance. Extensively applied across electronics, chemical processing, aerospace, and medical technology, they embody the finest international quality standards. At Xuan Nickel Alloys, our focus is delivering precision-engineered solutions, guaranteeing our customers receive reliable materials for their most demanding applications.
Sheets of Tantalum R05200 consist of high-purity tantalum, containing a tantalum content of not less than 99.9%, providing flawless chemical stability and inertness. They provide remarkable corrosion resistance, particularly against harsh acids like hydrochloric and sulfuric acid. With a melting point of around 3017°C, these sheets are resistant to mechanical breakdown and structural weakening under extreme temperatures. They show fine thermal and electrical conductivity, and a good level of ductility for easy manufacturability. Their biocompatibility adds to their applicability, making them credible materials for challenging applications in both industrial and medical fields.
| Standard Specifications | ASTM B708, ASME SB708 / ASTM F 560 |
| Thickness | 0.5 mm – 30 mm |
| Width | 10mm – 2500mm |
| Length | As Your Required |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

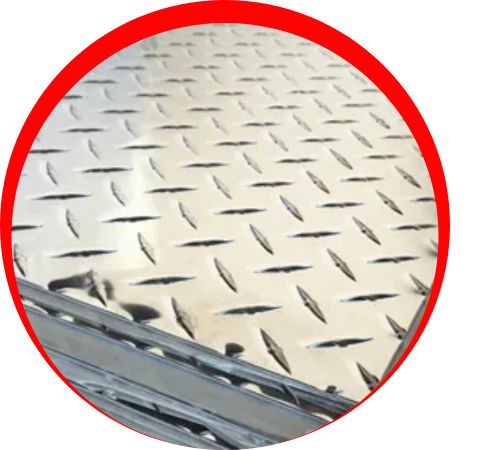

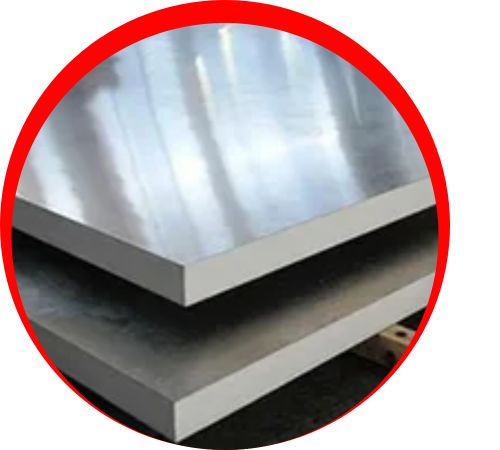

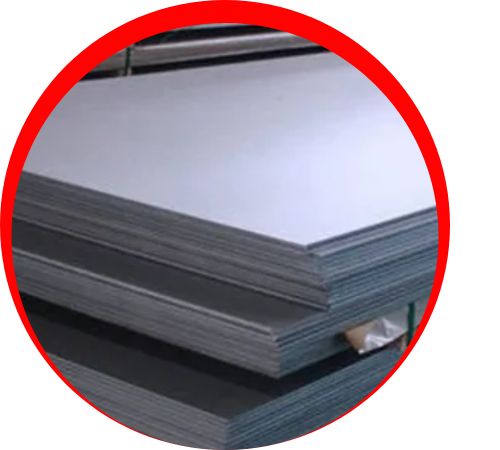

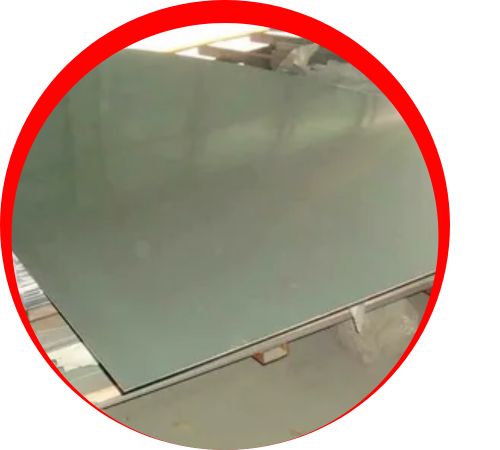

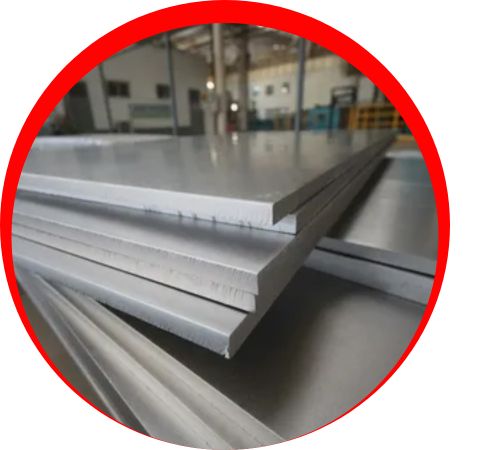

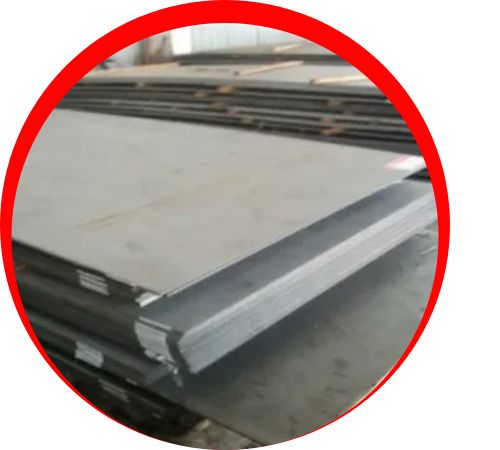

| Types | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Purity | ≥99.9% or 99.95% |
| Grade | R05200, R05400, R05255, R05252, R05240 |
| C | O | N | H | Fe | Mo | Nb | Ni | Si | Ti | W | Ta |
| 0.010 | 0.015 | 0.010 | 0.0015 | 0.010 | 0.020 | 0.100 | 0.010 | 0.005 | 0.010 | 9.0 – 11.0 | Remainder |
| Dimension | Ultimate Tensile Strength, min, psi (MPa) | Yield Strength, min, psi (MPa) (2 % Offset) | Elongation, min, % |
| < 0.125″ (3.175mm) | 70000 (482) | 60000 (414) | 15 |
| ≥0.125″ (3.175mm) | 70000 (482) | 55000 (379) | 20 |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Tantalum R05200 Sheets and Plates in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Sheets of Tantalum R05200 are widely applied in industries that demand corrosion resistance, stability, and high performance. In the electronics industry, they are used for making capacitors and high-performance resistors to power critical devices. In chemical processing, they find application in heat exchangers, reactors, and piping systems that are subject to highly corrosive media. Aerospace industries utilize them in parts that need to withstand severe heat and stress. In the health sector, their biocompatibility makes them applicable in surgical implants, prosthetics, and medical instruments. With a rare combination of strength, purity, and strength, Tantalum R05200 Sheets are the best bet for reliable solutions in sophisticated engineering applications globally.
