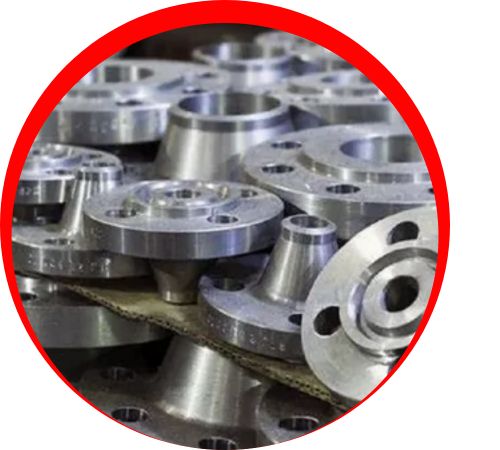

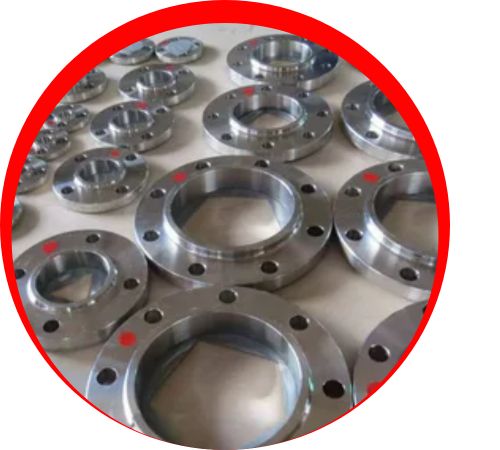

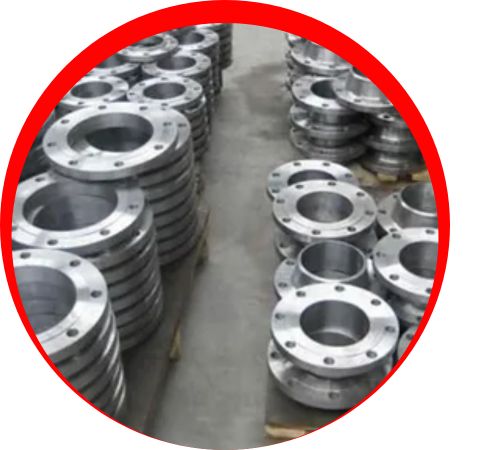

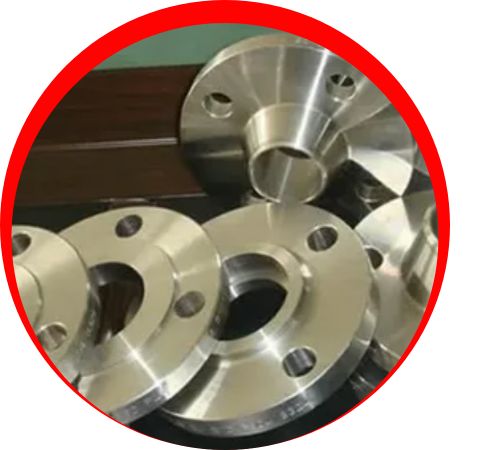

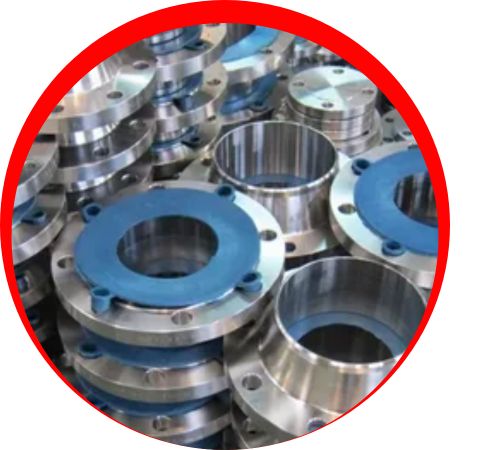

Xuan Flanges, a well-respected manufacturer and supplier based in Da Nang, Vietnam, specializes in high-quality Duplex Steel 2205 Flanges that are tailored to meet the needs of industries working in tough environments. These flanges are crafted with precision and comply with international standards, guaranteeing exceptional durability, reliability, and resistance to wear and tear. They come in a variety of types, including weld neck, slip-on, socket weld, blind, and threaded, making Duplex Steel 2205 Flanges an excellent choice for connecting pipes, valves, and other equipment, ensuring secure and leak-proof operations in critical sectors.
| Specifications | Duplex 2205 |
|---|---|
| Duplex 2205 Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| ASME B16.5 Duplex 2205 Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Duplex 2205 Flange Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Duplex 2205 Flange Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Duplex 2205 Flange Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Duplex 2205 Flange Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Duplex 2205 Flange Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Most common types of Duplex 2205 Flanges |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Duplex 2205 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Duplex 2205 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Specialized manufacturer of |
|
| Test | Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | West Europe /Indian / USA / Japan / Korean |
| Duplex 2205 2205 Flanges Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Key markets and industries for Duplex 2205 Flanges |
|
| Export to | Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Da Nang, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, etc |
| Duplex 2205 Flanges Application |
|
| The Chemical Composition of 2205 Duplex Steel Flanges, % | |
|---|---|
| Sulfur | ≤0.02 |
| Chromium | 21.0-23.0 |
| Nickel | 4.5-6.5 |
| Carbon | ≤0.03 |
| Manganese | ≤2.00 |
| Silicon | ≤1.00 |
| Phosphate | ≤0.03 |
| Molybdenum | 2.5-3.5 |
| Nitrogen | 0.08-0.2 |
| Gr. | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| Duplex Steel S32205 Flanges | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Duplex Steel 2205 Flanges in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These flanges are widely used across various industries, including oil and gas exploration, petrochemicals, chemical processing, power generation, marine engineering, and desalination plants. They are especially valuable in environments that face chlorides and high pressure, making them perfect for pipelines, heat exchangers, pressure vessels, and offshore platforms. Their ability to endure extreme temperatures and corrosive substances ensures a long service life, making Duplex Steel 2205 Flanges a top choice for critical industrial projects.
