At Xuan Nickel Alloys, based in Da Nang, Vietnam, we specialize in providing premium Monel K500 Bars, known for their exceptional strength and corrosion resistance. These bars, crafted from a high-performance nickel-copper alloy, are ideal for demanding applications in marine, aerospace, and industrial environments. Our Monel K500 Bars offer enhanced durability and reliability, ensuring long-term performance in harsh conditions. As a leading manufacturer and supplier, we are committed to delivering superior products that meet the highest industry standards.
Xuan Nickel Alloys is a reputable manufacturer and supplier based in Da Nang, Vietnam, known for providing top-notch Monel K500 Bars that cater to the needs of critical industrial applications. These bars are crafted from a nickel-copper alloy that’s enhanced with aluminum and titanium, resulting in a remarkable blend of strength, toughness, and resistance to corrosion. Monel K500 Bars maintain the impressive resistance to seawater, salt solutions, acids, and alkaline environments that Monel 400 is known for, while the process of precipitation hardening boosts their mechanical properties, giving them increased hardness and wear resistance.
|

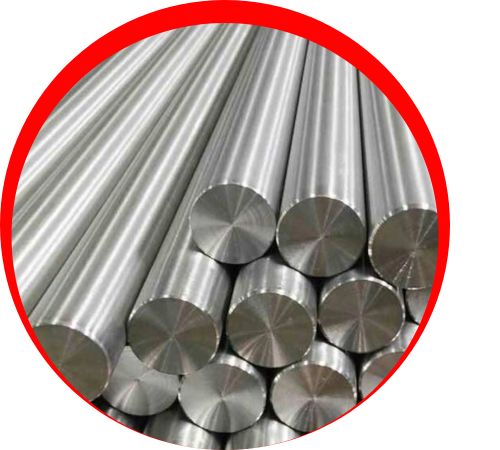

Monel K500 Round Bar Specifications |
||
| Specifications | : | ASTM B865 / ASTM SB865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

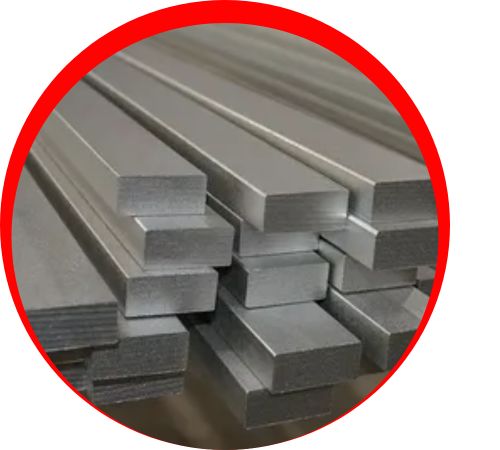

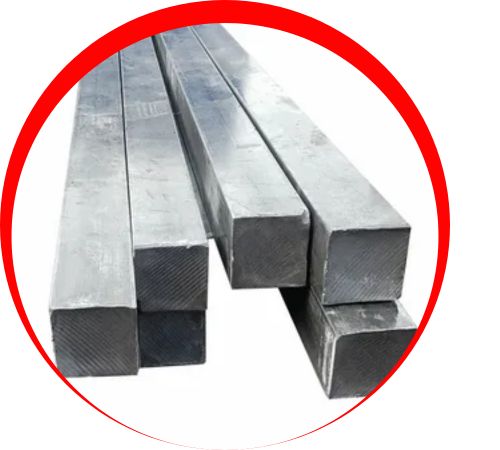

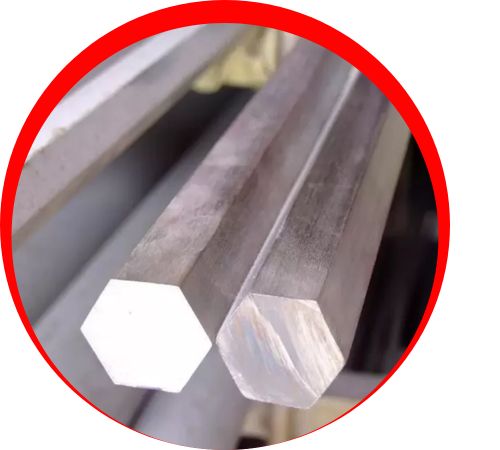

| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min | 0.010 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15000 , MPa – 790 | 20% |
These bars are celebrated for their outstanding tensile and yield strength, impact resistance, and durability across a wide temperature range, even in cryogenic conditions. They stand up to pitting, crevice corrosion, stress corrosion cracking, and oxidation, making them a reliable choice for demanding and high-pressure environments. Plus, their non-magnetic properties in certain situations add to their appeal for specialized applications.
Contact us to get a quick quote for your requirement.
When it comes to uses and applications, Monel K500 Bars are essential in marine engineering components, pump shafts, valve parts, fasteners, heat exchangers, and drilling equipment. They find extensive use in offshore oil and gas platforms, chemical and petrochemical processing plants, power generation units, and the aerospace industry. In high-strength mechanical assemblies, Monel K500 Bars provide exceptional performance, ensuring safety, durability, and resistance to wear and corrosive damage.
