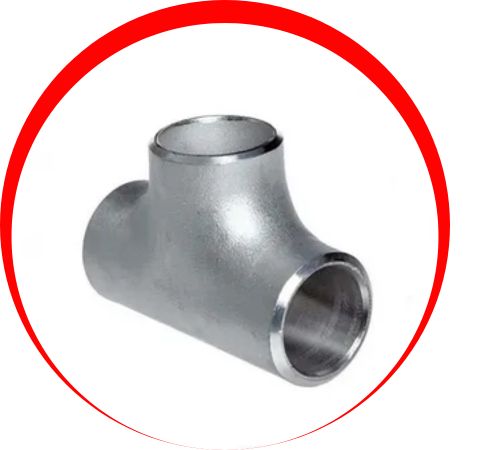

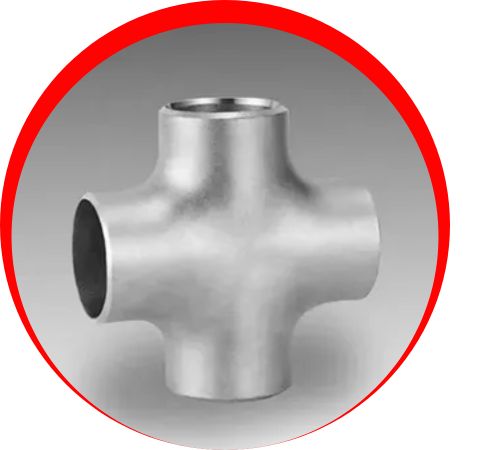

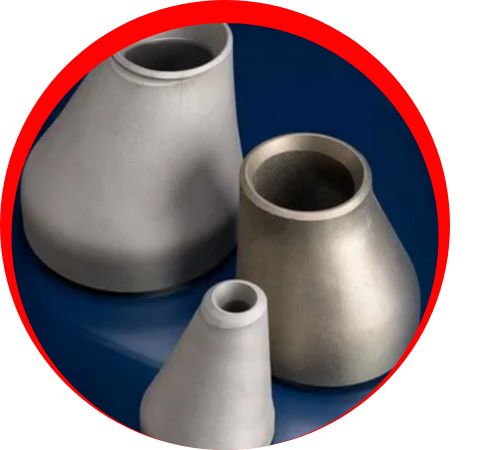

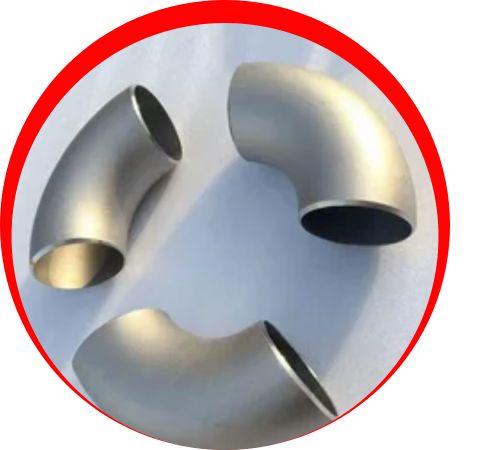

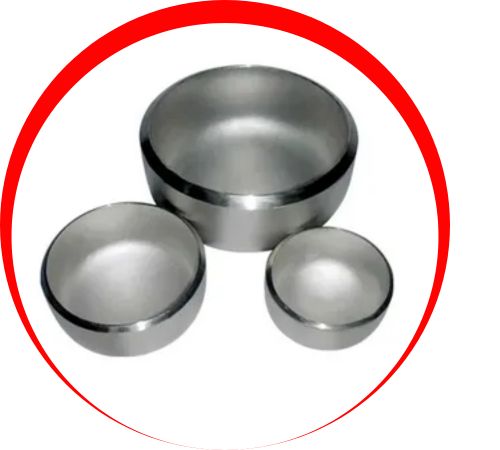

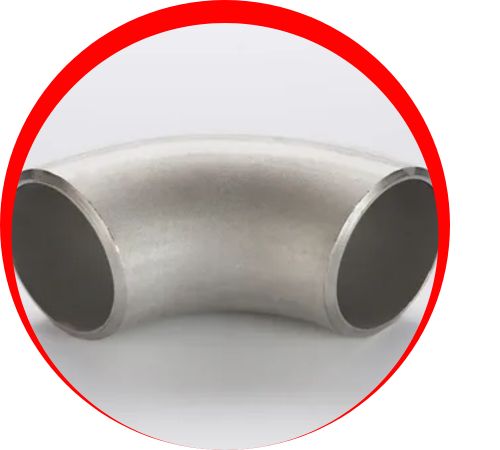

Xuan Nickel Alloys in Da Nang, Vietnam, is a reliable producer and distributor of top-grade Inconel 625 pipe fittings, providing corrosion-resistant solutions to the marine, aerospace, chemical processing, and oil & gas industries. Renowned for precision engineering and compliance with international standards, the company provides a comprehensive array of fittings such as elbows, tees, reducers, and couplings. Their Inconel 625 fittings are manufactured through advanced forming and heat treatment methods in order to guarantee high performance under harsh conditions. Xuan Nickel Alloys is dedicated to delivering reliable, durable products specifically designed to suit unique customer requirements in high-performance industrial industries.
Inconel 625 is a nickel-chromium-molybdenum alloy with the addition of niobium, which provides excellent strength and corrosion resistance. The standard composition contains 58% nickel, 20–23% chromium, 8–10% molybdenum, and 3.15–4.15% niobium. It provides a tensile strength of approximately 827 MPa, yield strength of 414 MPa, and excellent ductility with elongation over 30%. This alloy possesses high mechanical properties in a wide temperature range, from cryogenic to 980°C. Its ability to resist pitting, crevice corrosion, and chloride-stress corrosion cracking in severe services qualifies it for corrosion and high-pressure services.
Standard :ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 625 Pipe Fittings in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 625 pipe fittings are used extensively in industries where conditions are extreme, like in offshore oil rigs, chemical processing, heat exchangers, and nuclear reactors. These fittings are greatly appreciated because they can resist seawater, harsh chemicals, and extreme temperatures to provide leak-proof and guaranteed connections. They find application in fuel and hydraulic lines in aerospace, with good performance in saltwater in marine use. Inconel 625 fittings have mechanical strength, easy weldability, and long service life, making them critical in high-performance and low-maintenance applications in corrosive and stress-heavy systems.
