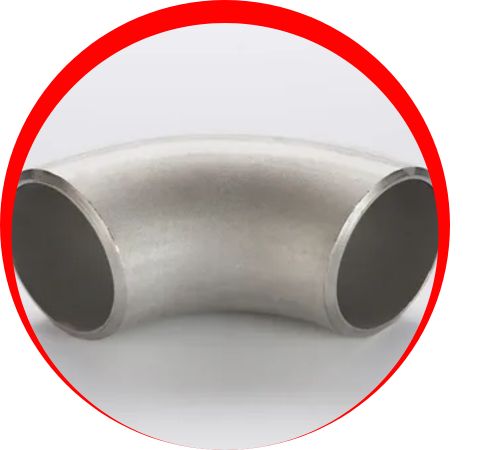

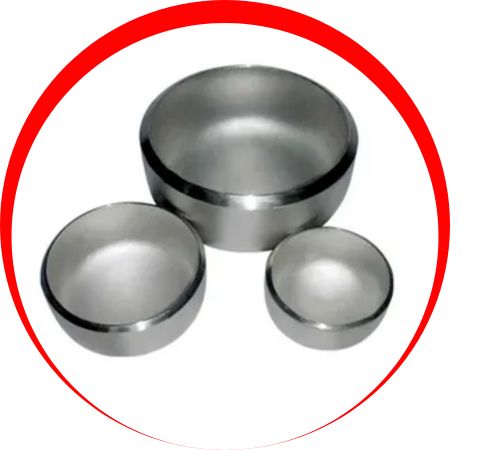

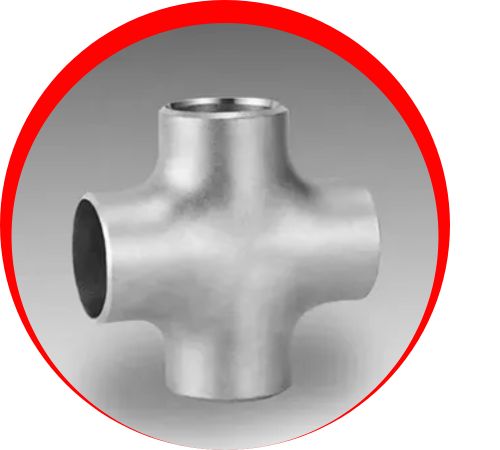

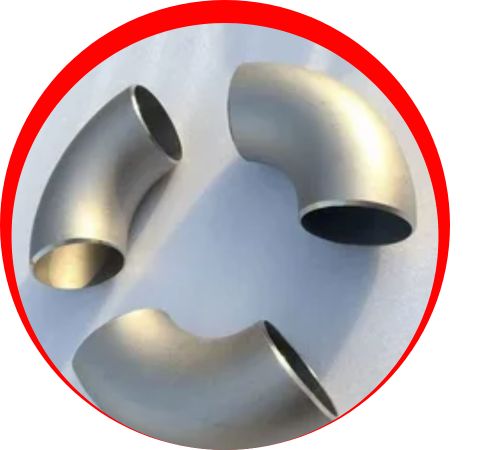

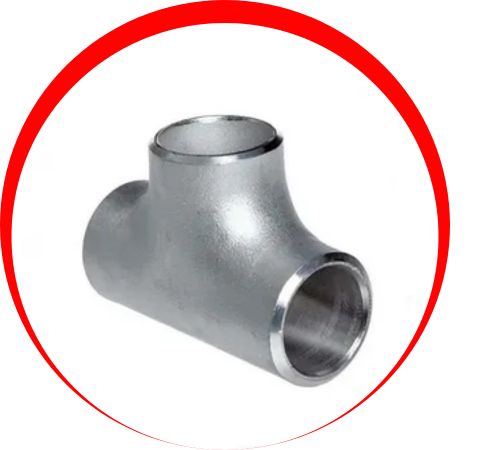

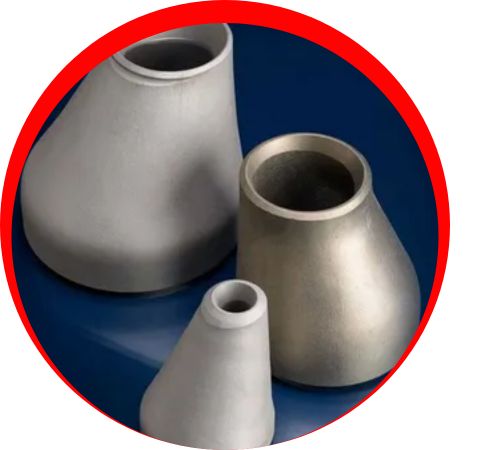

Xuan Nickel Alloys, located in Da Nang, Vietnam, is a reliable manufacturer and supplier of Inconel 617 pipe fittings for high-performance applications across power generation, petrochemical, aerospace, and heat treatment industries. The company supplies the complete range of fittings such as elbows, tees, reducers, and caps, precision-manufactured to high quality standards. Committed to nickel alloys, Xuan Nickel Alloys guarantees every fitting to provide equal performance in high-pressure, high-temperature, and corrosive service, where long life and dimensional stability are of utmost importance.
Inconel 617 is a nickel-chromium-cobalt-molybdenum alloy that possesses superior strength and oxidation resistance at high temperatures up to 1100°C. The typical composition of the alloy is 44.5–61% nickel, 20–24% chromium, 8–10% cobalt, and 9–10% molybdenum. Inconel 617 pipe fittings possess tensile strength of about 540 MPa, yield strength of about 300 MPa, and superior creep resistance. The material also offers resistance to carburization, sulfidation, and chloride-induced corrosion, which makes it perfectly suited for severe chemical and thermal conditions where long-term mechanical integrity must be preserved.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Inconel 617 UNS (N06617), DIN (2.4663)
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Pipe Fittings in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 617 pipe fittings find applications in extremely demanding situations like gas turbines, chemical reactors, heat exchangers, and nuclear systems. These fittings find use in piping systems that have to withstand harsh heat, pressure, and corrosive environments where there can be no failure. In refineries and power plants, they are appreciated for their capability to withstand thermal cycling as well as aggressive media. Their resistance to oxidation, strength, and metallurgical stability make Inconel 617 pipe fittings a choice for use in important structures that need safe, leak-free, and durable connections.
