Incoloy 825 Forgings are primarily made up of Nickel, Iron, and Chromium, with added Molybdenum, Copper, and Titanium to boost their corrosion resistance. This unique blend provides excellent protection against pitting, crevice corrosion, and intergranular corrosion, even in aggressive environments. On the mechanical side, Incoloy 825 Forgings showcase high tensile strength, impressive toughness, good fatigue resistance, and outstanding thermal stability. They maintain their strength under high stress and elevated temperatures, ensuring long-lasting durability that makes them ideal for demanding industrial applications.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |

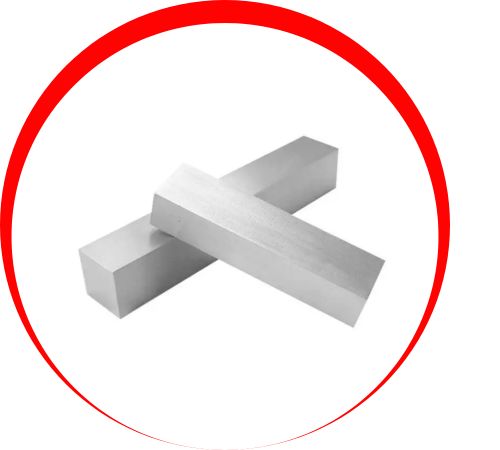

| Flat bar blocks | up to 27″ width and 15,000 lbs |

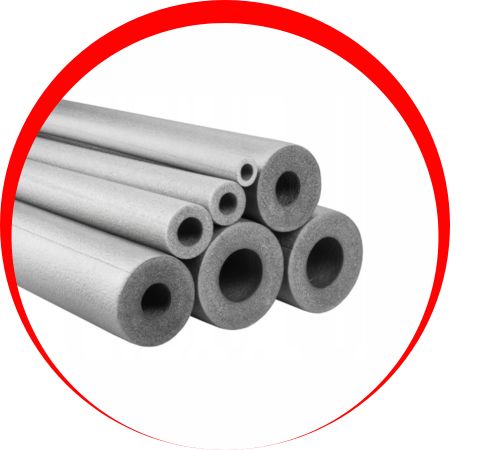

| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

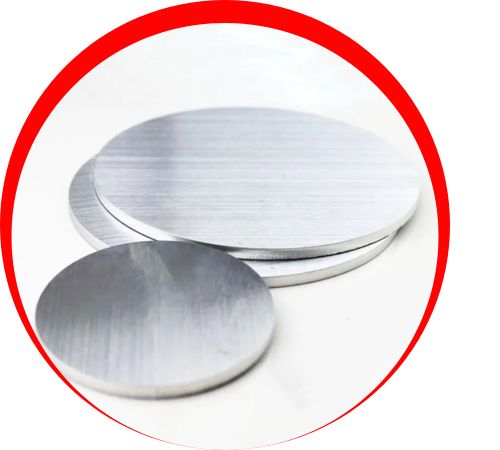

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

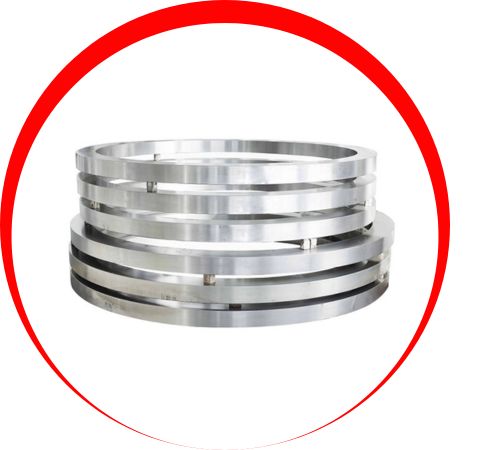

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

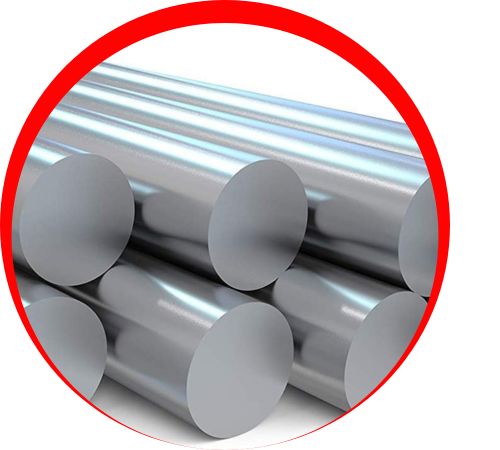

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Forgings in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These Incoloy 825 Forgings are widely utilized across various industries. In chemical and petrochemical plants, they are essential for equipment that comes into contact with acids, alkalis, and other harsh chemicals. The oil and gas sector relies on them for pipelines, offshore platforms, and sour gas applications, thanks to their resistance to seawater and sulfide stress cracking. Pollution control equipment, marine engineering, and power generation facilities also depend on these forgings for their resilience in high-stress, corrosive conditions. Their blend of strength and corrosion resistance guarantees reliable performance in critical operations.
