Xuan Alloys, a reputable manufacturer and supplier based in Da Nang, Vietnam, proudly offers top-notch Haynes 230 Bars. These bars are engineered for exceptional high-temperature strength, oxidation resistance, and corrosion resistance, making them perfect for tough industrial settings. Crafted to meet international standards, they come in a variety of sizes and dimensions to fit a wide range of applications. Haynes 230 Bars deliver outstanding performance in sectors like chemical processing, aerospace, power generation, and heat treatment, ensuring long-lasting reliability and durability even in extreme temperatures and harsh environments.
The composition of Haynes 230 Bars includes Nickel, Chromium, Tungsten, Iron, Cobalt, along with trace amounts of Manganese and Silicon. This distinctive alloy blend provides remarkable resistance to oxidation, carburization, and sulfidation at high temperatures, all while maintaining impressive mechanical strength. In terms of mechanics, Haynes 230 Bars showcase high tensile and yield strength, exceptional creep resistance, and excellent toughness, making them ideal for demanding high-temperature applications.
| Standards : | ASTM 5878, ASME S5878 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

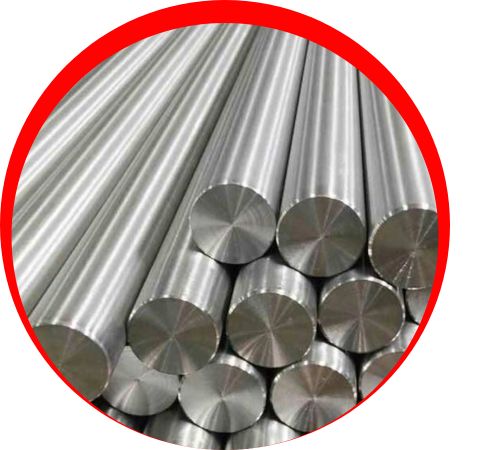

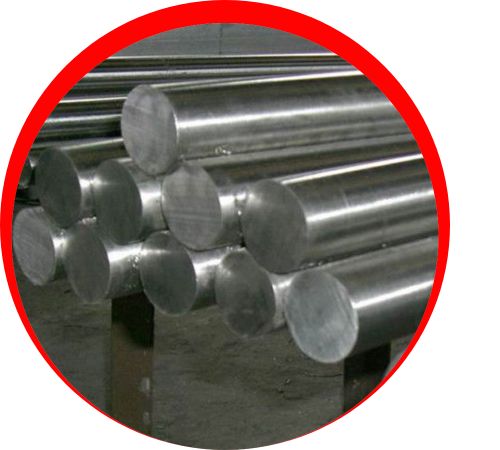

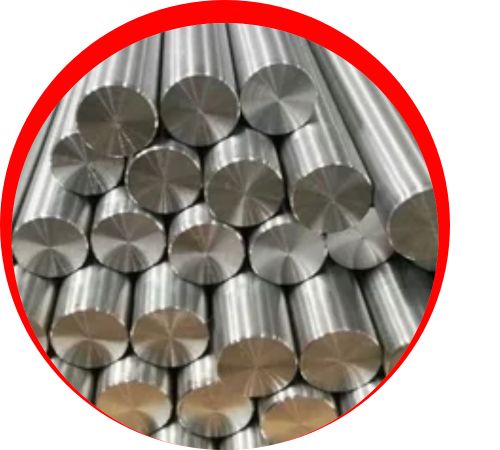

| Round bar size : | Diameter: 3-~800mm |

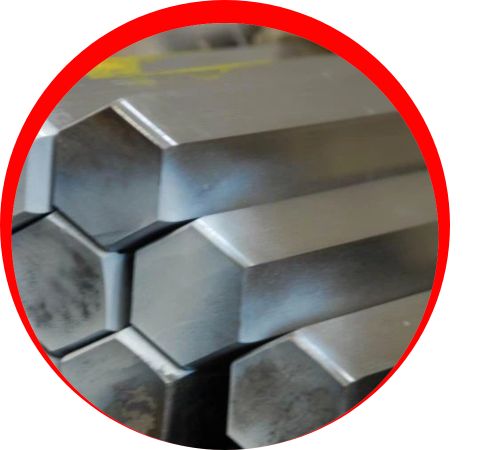

| Hex Bar size : | 2-100mm A/F |

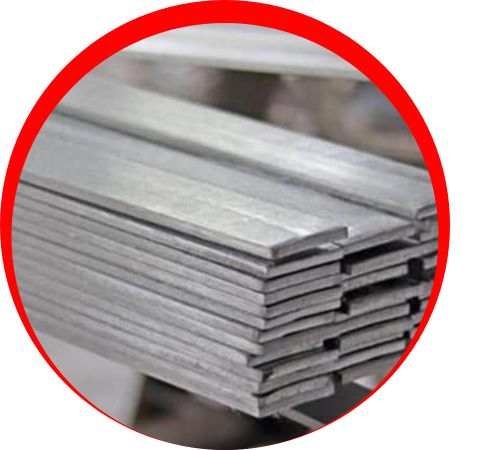

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

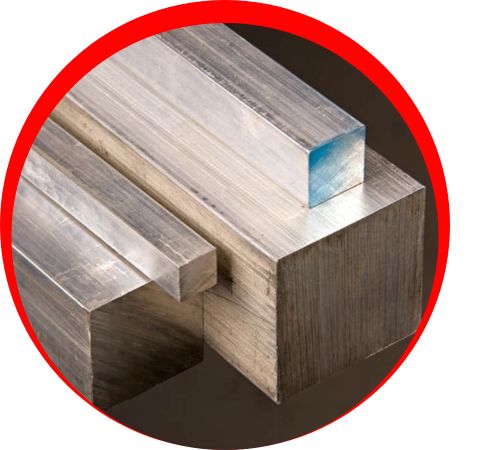

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe | W | B | La | Co | Ai | Ti | Cu | La | Mo |
| Haynes 230 | 0.05-0.15 | 0.30-1.0 | 0.03 max | 0.015 max | 0.25-0.75 | Rem | 20.0-24.0 | 3.0 max | 13.0-15.0 | 0.015 max | 0.005-0.05 | 5.0 max | 0.20-0.50 | 0.10 max | 0.50 max | 0.005-0.05 | 1.0-3.0 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness HB |
| ksi – 758, MPa – 110 | ksi – 310, MPa – 45 | 35 % | 241 max |
At Xuan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Haynes 230 Bar in Da Nang, Vietnam, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Vietnam, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These bars are extensively utilized in industries where high-temperature performance and corrosion resistance are essential. In chemical processing facilities, they find their place in furnaces, reactor components, and heat exchangers. The aerospace sector employs them for turbine components, jet engines, and exhaust systems. Power generation plants depend on Haynes 230 Bars for boiler parts, gas turbines, and other high-temperature equipment. Their durability, resistance to harsh environments, and mechanical reliability make Haynes 230 Bars the go-to choice for critical applications that require consistent performance under extreme conditions.
